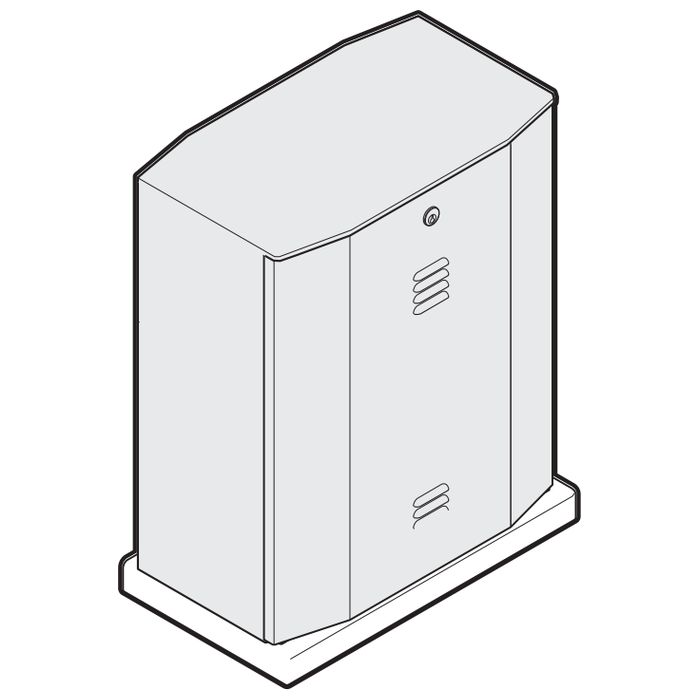

Sliding gate operator Came BY 3500T

Manufacturer: Came

Manufacturer index: BY-3500T

Index: 1835

Motor for very heavy sliding gates weighing up to 3500 kg. Designed for industrial applications. Three-phase motor. Equipped with a built-in Came ZT6 control unit and mechanical limit switches.

Technical specification

Maximum gate weight	3500 kg
Application	Industrial
Built-in control unit	✔ Came ZT6
Built-in radio receiver	✘
Power supply	230–400 V AC
Motor power supply	230–400 V AC
Limit switches	Mechanical
Synchronous operation of two drives	✔

Efficiency

Travel speed	10.5 m/min
Force	3500 N
Duty cycles	8 cycles/hour
Current consumption	8 A
Power	1000 W

Pinion gear

Pinion gear module	M6
Height to the top of the pinion gear	222 mm
Interchangeability with others	✔ for M4, Came 119RIY088

Dimensions, weight

Protection degree	IP54
Operating temperature	-20 °C ÷ +55 °C
Dimensions	480 × 295 × 578 mm
Weight	74 kg

Manufacturer / Responsible entity

CAME S.p.A.
Via Martiri della Libertà 15
31030 Dosson di Casier (TV)
Italy
Phone: +39 0422 4940
