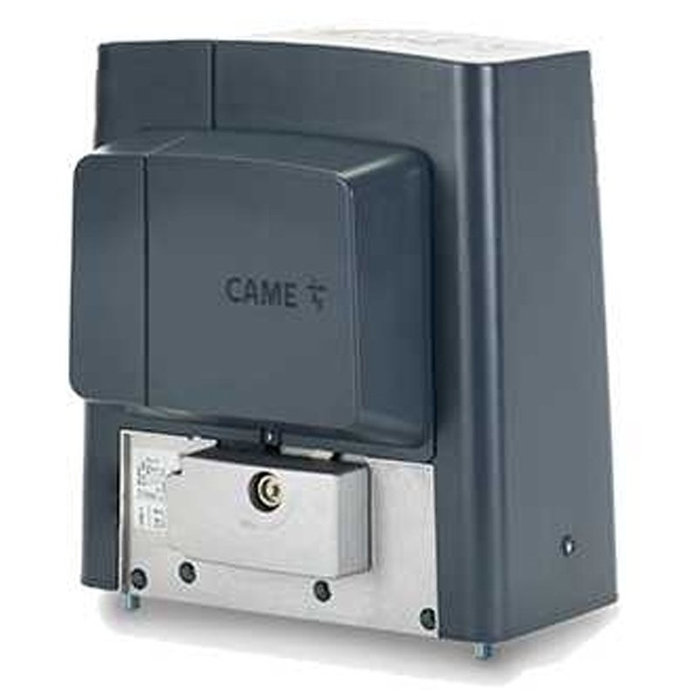

Sliding gate operator Came BKS22TGS with ZT6 control unit
Manufacturer: Came
Manufacturer index: 801MS-0130+ZT6
Index: 1821
Motor for heavy sliding gates weighing up to 2200 kg. Designed for industrial applications. Three-phase motor. Includes Came ZT6 control unit in an external housing. Equipped with mechanical limit switches and a Pinion gear with module 6.
Technical specification
| Maximum gate weight | 2200 kg |
|---|---|
| Application | Industrial |
| Built-in control unit | ✔ Came ZT6N supplied in a separate enclosure |
| Built-in radio receiver | ✘ |
| Power supply | 230–400 V AC |
| Motor power supply | 230–400 V AC |
| Limit switches | Mechanical |
| Synchronous operation of two drives | ✘ |
Efficiency
| Travel speed | 17.5 cm per second |
|---|---|
| Force | 1650 N |
| Duty cycles | 14 cycles per hour, maximum 17 cycles in a row |
| Current consumption | 1 A |
| Power | 520 W |
Pinion gear
| Pinion gear module | 6 |
|---|---|
| Height to the top of the pinion gear | 105 mm |
| Interchangeability with others | ✔, for module 4 pinion gear |
Dimensions, weight
| Protection degree | IP44 |
|---|---|
| Operating temperature | -20 °C ÷ +55 °C |
| Dimensions | 326 × 262 × 360 mm |
| Weight | 21 kg |
