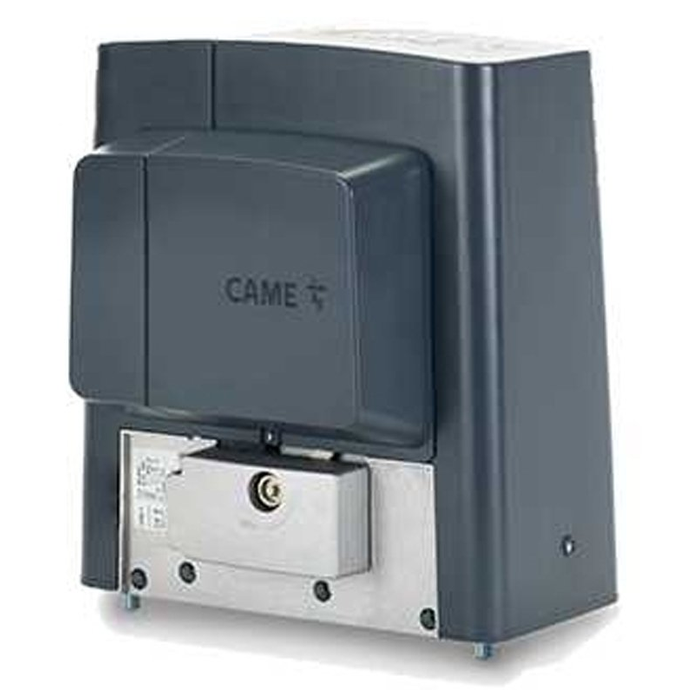

Sliding gate operator Came BKS12AGS
Manufacturer: Came
Manufacturer’s index: BKS12AGS
Index: 1826
EAN:
8050456067609
Motor for sliding gates weighing up to 1200 kg. Designed for industrial applications. 230V motor. Equipped with a built-in Came ZBKN control unit, mechanical limit switches, and a Pinion gear with module 4.
Technical specification
| Maximum gate weight | 1200 kg |
|---|---|
| Application | Industrial |
| Built-in control unit | ✔ Came ZBKN |
| Built-in radio receiver | ✘ |
| Power supply | 230 V AC |
| Motor power supply | 230 V AC |
| Limit switches | Mechanical |
| Synchronous operation of two drives | ✔ |
Efficiency
| Travel speed | 17.5 cm per second |
|---|---|
| Force | 850 N |
| Duty cycles | 14 cycles/hour |
| Current consumption | 3.3 A |
| Power | 380 W |
Pinion gear
| Pinion gear module | 4 |
|---|---|
| Height to the top of the pinion gear | 105 mm |
| Interchangeability with others | ✔ for M6 - Came 88001-0173 |
Dimensions, weight
| Protection degree | IP44 |
|---|---|
| Operating temperature | -20 °C ÷ +55 °C |
| Dimensions | 326 × 262 × 360 mm |
| Weight | 18 kg |
Manufacturer / Responsible entity
CAME S.p.A.
Via Martiri della Libertà 15
31030 Dosson di Casier (TV)
Italy
Telephone: +39 0422 4940
Via Martiri della Libertà 15
31030 Dosson di Casier (TV)
Italy
Telephone: +39 0422 4940
