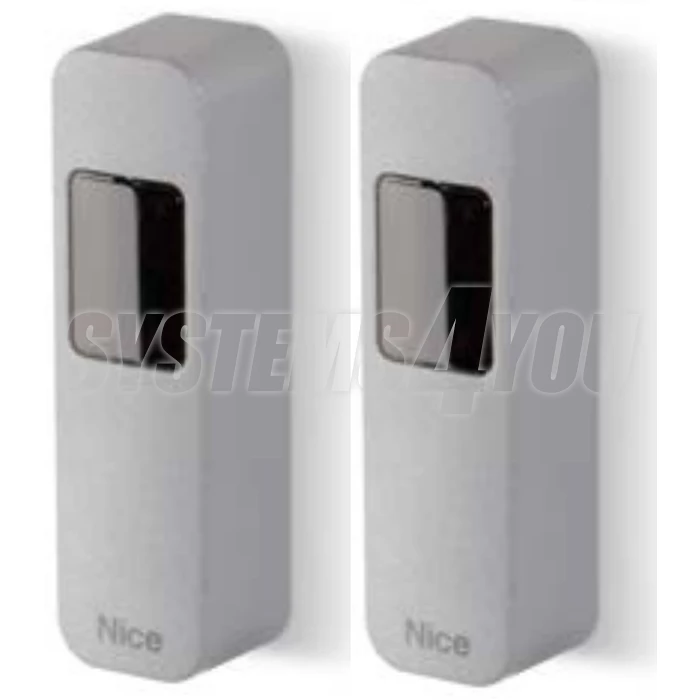

Photocell Nice EPSA
Manufacturer: Nice
Manufacturer’s index: EPSA
Index: 2135
EAN:
8050506252023
Universal wired relay photocell NO or NC, powered by 24 V AC/DC voltage. Designed for surface mounting, also in very narrow places. Metal, vandal-proof housing.
Technical specification
| Connection method | Wired |
|---|---|
| Power supply | 24 V AC/DC |
| Mounting method | Surface-mounted |
| Output type | Relay NC or NO |
| Output load | 500 mA at 48 V |
| Current consumption | 55 mA |
| Range | 15 m |
| TX-RX synchronization | ✔ |
| Housing | Metal |
| Protection rating | IP44 |
| Safety classification | Type D according to EN 12453 standard |
| Dimensions | 31 × 108 × 28 mm |
| Operating temperature | -20 °C ÷ +50 °C |
| Scope of delivery |
1 × Transmitting photocell TX 1 × Receiving photocell RX |
